In this tutorial we will help you setup PureVPN on your router with the OpenWRT firmware.

Head over here if you are looking at installing and setting up DDWRT firmware on your router

PureVPN offers a great VPN service, with some great apps to get you up and running on your devices. However we found using and setting up the service on our OpenWRT router quite problematic. The support files seem out dated and buggy, and there is little help available on the support pages and internet.

Please remember this tutorial is for creating a secondary VPN only router to your main primary internet router

You must ensure that you have the following for this setup to work

Cable router with OpenWRT firmware already setup with SSH access. Our test router had the OpenWRT firmware V18.06.4

Windows 10 OS computer for setting up our VPN router.

A PureVPN subscription. Head over here if you don’t have one. You will be provided with a great offer using our link here

You will require the following files. Download these and have them on your desktop.

PureVPN profile – Download from here - Extract using winzip or 7zip on to your windows 10 desktop

WinSCP – Download from here – Install program as this will be required later

Let’s now carry out the steps required

Access and login into the OpenWRT router from your browser so that we can update and install the necessary router software program files.

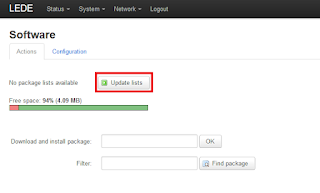

Within the OpenWRT browser Luci screen go to “System” > “Software”

Now click on the “Update” button and wait for the screen to update

Now within the “Download and install package” tab enter "luci-app-openvpn openvpn-openssl" and press the “OK” button. This will now install the VPN package software to the router. Be patient for the software to install.

We now need to configure the OpenVPN package and setup the firewall

Now go to "Network" > "Interfaces" and click the "Add new interface" button.

Now Enter "openvpn" in "Name of the new interface".

Select "Unmanaged" in the "Protocol of the new interface" box.

Select "Custom interface" and enter "tun0". Note the zero and not the letter O.

Now click the "Submit" button.

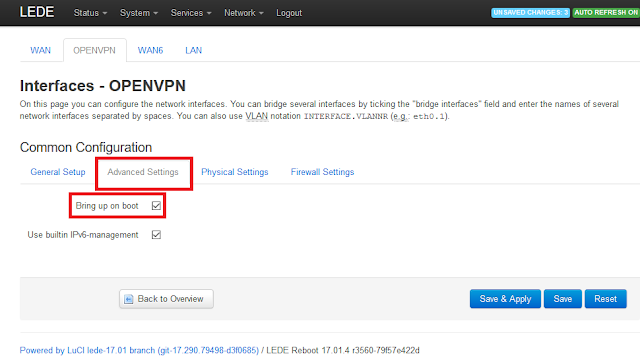

Now click the "Advanced Settings" tab and select "Bring up on boot".

Now click the "Firewall Settings" tab and select "unspecified -or- create:". enter "vpn".
Click "Save and apply".

You should now have the "OpenVPN interface" like the picture below.

** Important Note: Please be careful here as you can lock yourself out of LuCI. **

Now go to "Network" -> "Firewall"
Change on "wan" "Input" and "Forward" to "drop"
Deselect "wan" "Masquerading" and "MSS clamping" checkbox.
Change on "vpn" "Input" and "Forward" to "drop"
Select "vpn" "Masquerading" and "MSS clamping" checkbox.
Click "Save and apply".



Now click the "lan" "Edit" button.

Select "vpn" "Allow forward to destination zones:" checkbox.

Deselect the "wan" "Allow forward to destination zones" checkbox.
Click "Save and apply".
Click "Back to Overview" button.

Your Firewall Zones should look like the image below.
Note: Devices connected to the LAN will only get internet access when the VPN is enabled.

Lets now add the PureVPN profile.

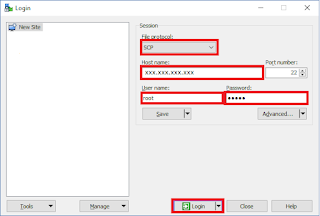

Install WinSCP and run program.
Log in to your router.



On the left window, navigate to  your "Desktop".
On the right window, navigate to "/etc/openvpn".
Drag purevpn folder from left window to the right.

Double click purevpn folder in right window, then double click on "auth" file.
Enter your purevpn username on top line. eg purevpn0*****
Enter purevpn password on bottom line.
Save and close file.

Now navigate in right window to "/etc/config".
Rename the  "openvpn" file in right window to "openvpn.bak".
Now drag the new "openvpn" file from left window to the right.
Exit WinSCP.
Reboot OpenWRT/LEDE router.

Log back into OpenWRT/LEDE and go to "Services" -> "OpenVPN"
Click on the "enabled" checkbox next to purevpn.
Click "Save and apply".
Finally press the "Start" button to enable the VPN.
Note: Connection to PureVPN is a little slow. This is normal

To change VPN server, go to "Services" -> "OpenVPN"

Click the "Edit" button.
The Server list is available here. This is updated by PureVPN
Note: Select servers with UDP protocol.

You can now visit www.ipleak.net to check your VPN status.

As an option you may wish to add the Google DNS Servers.

Go to: "Network" -> "Interfaces" -> "LAN" -> "Edit" -> "DHCP Server" (below the “Common Configuration” section) -> "Advanced Settings". In the "DHCP-Options" enter: "6,8.8.8.8,8.8.4.4".
Click "Save and apply".

Hopefully you will now have a working OpenWRT PureVPN connection.
